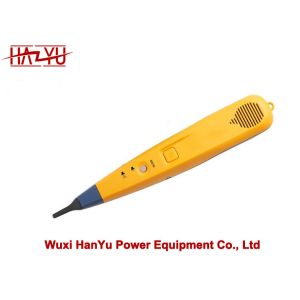

    Buy cheap Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator from wholesalers

    Buy cheap Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator from wholesalers
    • Buy cheap Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator from wholesalers
    • Buy cheap Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator from wholesalers

    Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : Pro3000
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 10000sets/month.
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator

    Powerline Tools Pro3000 Analog Probe Filter and Analog Tone Generator


    Stop the Buzz.

    Find Cables Faster with Clear, Precise Toning

    Clear - Innovative filter technology blocks interference (“buzz") that makes tracing difficult (T** models only)

    Precise - SmartTone™ technology provides five distinct tones for exact pair identification

    Sends loud tone up to 10 miles (16 kilometers) on most cables

    Loud speaker on probe makes the tone easier to hear through drywall, wood, and other enclosures

    Angled bed-of-nails clips allow easy access to individual pairs

    RJ-11 connector is ideal for use on telephone jacks

    Attach nylon pouch (included in kit) to your belt for easy


    Pro 3000 Toner Specifications

    User Interface

    Slide Switch selects Continuity or Tone Mode Push button switch selects SOLID, ALT, or OFF Tone mode LED

    Continuity/Polarity LED

    Solid Frequency1000 Hz nominal
    Dimensions2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)
    Alternating Frequency1000/1500 Hz nominal
    Over Voltage Protection60 Vdc in Toner/Polarity Mode
    TemperatureOperating: -20°C to 60°C, Storage: -40° to 70° C
    Output Power in Tone Mode8 dbm into 600 ohms
    Battery9V alkaline
    Output Voltage Level in Continuity Mode8 Vdc with fresh battery
    FeaturePro3000 Analog Tone and ProbePro3000F60-KITPro3000F50-KITIntellitone Pro 200 (MT-8200-60-KIT)
    Analog Signal tracingXXXX
    Digital Signal tracingX
    SmartTone™XXXX
    Used on Inactive NetworksXXXX
    Used on Active NetworksX
    Frequency Filter60 Hz50 Hz
    3.5 mm JackXXX
    Replacable TipXXX
    Auto-OffX (Probe - 5 minutes)X (Probe - 5 minutes)X (Toner= 2.5 hours, Probe = 1 hour)
    WiremapX
    Signal Strength IndicatorX

    Features

    • Pro3000 Analog Toner Specifications:
    • Solid Frequency - 1000 HZ Nominal
    • Alternating Frequency - 1000/1500 HZ Nominal
    • Over Voltage Protection - 60 VDC om Toner/Polarity mode
    • Output Power in Tone Mode - 8 dbm into 600 ohms
    • Output Voltage Level in - 8 vdc with fresh battery
    • Battery type - 9v alkaline
    • Temperature - Operating -20 degree C to 60 degree C, storage : -40 degree C - 70 degree C
    • Pro3000 Analog Probe Specifications:
    • User Interface - On/Off push button, Volume Dial, Replaceable grip, 3.5mm earphone jack
    • Battery - 9V Alkaline
    • Temperature - Operating: -20 degree C to 60 degree C storage -40 degree C - 70 degree C
    • Signal Interference can be caused by multiple sources (I.e. power cables, fans, lighting, etc.) and can make tracing communication cabling almost impossible.
    • Analog Tone Generator and Probe Tracing Kit Network probe utilizes innovative filter technology to obstruct signal interference to make tracing your cable easier, regardless of the work environment. Depending on the region, signal interference may be at 60 Hz, which is most common in North America, or 50 Hz, which is more common in Europe and Asia. For this reason, there are 2 versions of Analog Tone Generator and Probe Tracing Kit Network Filtered Probe. Analog Tone Generator and Probe Tracing Kit Network60, which obstructs 60 Hz signals and its harmonics and Analog Tone Generator and Probe Tracing Kit Network50, which blocks interference at 50 Hz and its harmonics.
    • Technicians can also switch between filtered and unfiltered modes with a simple push of a button. The probe's loud speaker also allows for use in noisy locations and for tracing cable through drywall, wood and other enclosures. The probe also touts an auto-off feature that deactivates the probe after 5 minutes to conserve battery life.
