    Stringing Equipment TY2x40-1800 Hydraulic Wire Cable Tension Machine

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : TY2x40-1800
    Certification : ISO9001
    Price : USD57,500-61,000/set
    Supply Ability : 10Sets/Month
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

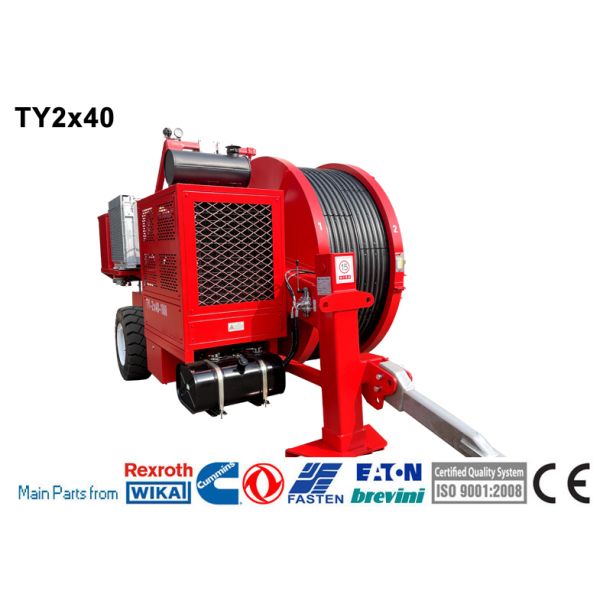

    Stringing Equipment TY2x40-1800 Hydraulic Wire Cable Tension Machine

    Stringing Equipment TY2x40-1800 Hydraulic Wire Cable Tension Machine


    TY2x40-1800

    Hydraulic Tensioner

    The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
    Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
    Performance

    Max intermittent tension: 2x45kN

    Max continuous tension: 2x40kN

    Max speed: 5km/h
    Speed at max tension: 2.5km/h
    Max reverse pulling force: 2x35kN
    Max reverse pulling speed: 5km/h
    Pull at max speed: 2x20kN
    Characteristics

    Bull-wheel diameter: 1800mm

    Groove number: 2x5
    Overall dimension (length*width*height): 4600×2250×2700mm
    Max conductor diameter: 40mm
    Total weight: 7790kg

    Main configuration

    Engine: Cummins

    Main motor:German Rexroth/French Leduc
    Main hydraulic valves: USA Sun / Italy ATOS
    Speed reducer: German Rexroth / Italy Bonfiglioli
    Hydraulic pump: German Rexroth/Dnish Danfoss
    Engine

    Diesel: 77kw(103hp)

    Electrical system: 24V
    Cooling system: water
    Hydraulic Transmission

    The machine can realize step less speed.

    The machine is provided with tension presetting system.

    Additional Devices

    Lighting system for the trailer

    Trailer for towing at max speed of 15 km/h
    2 hydraulic rope/conductor clamp(extra charge)
    Digital speed and meter counter
    Swivel guide rope roller
    Configuration

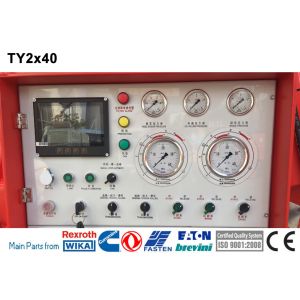

    Hydraulic dynamometers

    Hydraulic front stabilizer
    Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
    Hydraulic oil cooling system
    Grounding connection point
    Digital speed and meter counter
