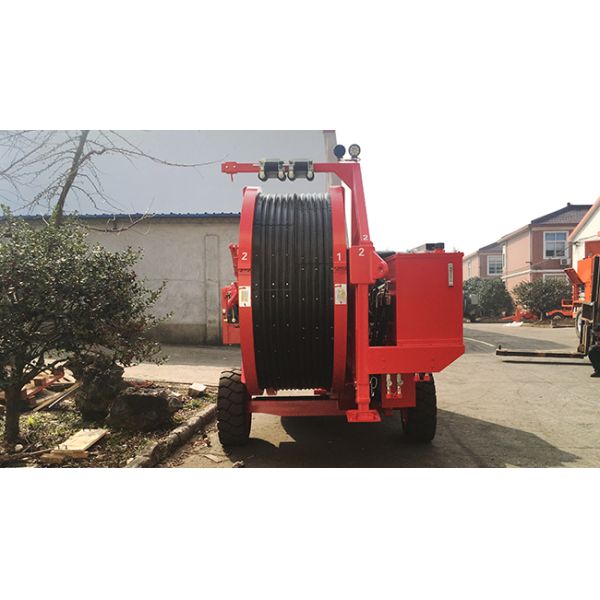

    Transmission Line Stringing Equipment 2x40KN Electric Hydraulic Tensioner

    Ask Lasest Price
    Brand Name : HANYU
    Model Number : TY2x40-1800
    Certification : ISO9001
    Price : USD57,500-61,000/set
    Supply Ability : 10Sets/Month
    Delivery Time : 15-35days
    • Product Details
    • Company Profile

    Transmission Line Stringing Equipment 2x40KN Electric Hydraulic Tensioner

    Transmission Line Stringing Equipment 2x40KN Electric Hydraulic Tensioner

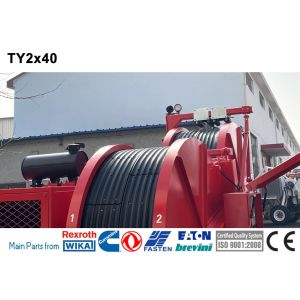

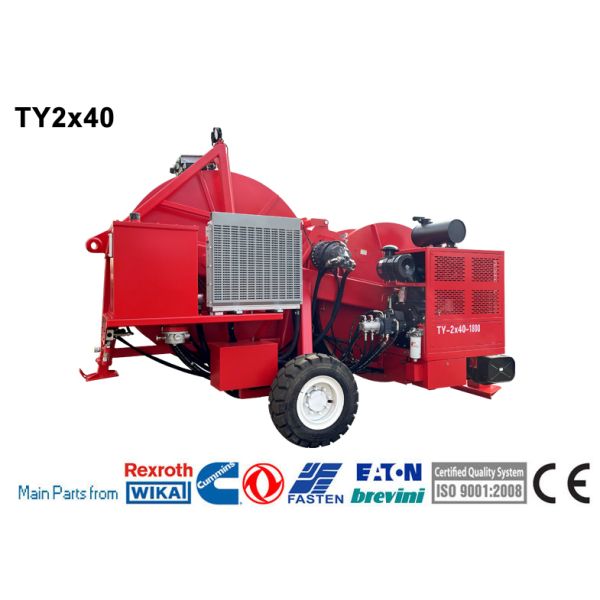

    TY2x40-1800 Hydraulic Tensioner
    • The machine allows for the tension stringing of twin-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains;
    • Besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains
    Characteristics
    Max conductor diameter: 40mm
    Bull-wheel diameter: 1800mm

    Total weight: 7790kg

    Groove number: 2x5
    Overall dimension (length*width*height): 4600×2250×2700mm

    Performance

    Max continuous tension: 2x40kN

    Max intermittent tension: 2x45kN
    Max speed: 5km/h
    Speed at max tension: 2.5km/h
    Max reverse pulling speed: 5km/h

    Max reverse pulling force: 2x35kN

    Pull at max speed: 2x20kN
    Main configuration

    Engine: Cummins

    Speed reducer: German Rexroth / Italy Bonfiglioli

    Hydraulic pump: German Rexroth/Dnish Danfoss

    Main hydraulic valves: USA Sun / Italy ATOS

    Main motor: German Rexroth/French Leduc

    Engine

    Diesel: 77kw(103hp)

    Cooling system: water

    Electrical system: 24V
    Hydraulic Transmission
    The machine is provided with tension presetting system.

    The machine can realize step less speed.

    Additional Devices

    Trailer for towing at max speed of 15 km/h

    Lighting system for the trailer

    2 hydraulic rope/conductor clamp(extra charge)

    Digital speed and meter counter
    Swivel guide rope roller

    Configuration

    Digital speed and meter counter

    Hydraulic dynamometers

    Hydraulic oil cooling system

    Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor
    Hydraulic front stabilizer
    Grounding connection point
