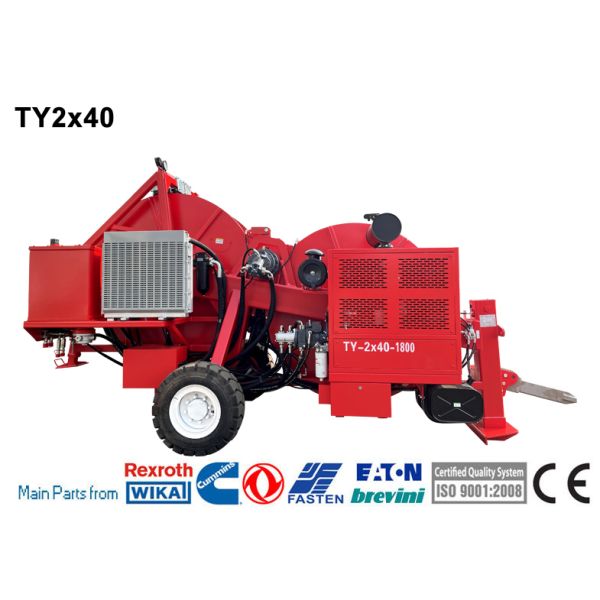

TY2x40-1800 Transmission Line Stringing Equipment Hydraulic Cable Tensioner

TY2x40-1800 Hydraulic Tensioner

The machine allows for the tension stringing of twin-bundle conductor of 630mm² and below in mountainous and hilly areas, of twin-bundle conductor of 720mm² and below in flat lands, and of conductor 720mm² in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains

Performance

Characteristics

Bull-wheel diameter: 1800mm

Max conductor diameter: 40mm

Groove number: 2x5

Total weight: 7790kg

Overall dimension (length*width*height): 4600×2250×2700mm

Engine

Diesel 77kw(103hp)

Cooling system water

Electrical system 24V

Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth / Italy Bonfiglioli

Main hydraulic valves: USA Sun / Italy ATOS

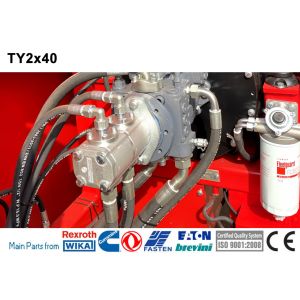

Hydraulic Transmission

The machine can realize step less speed.

The machine is provided with tension presetting system.

Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Digital speed and meter counter

Hydraulic front stabilizer

Grounding connection point

Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor

Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp(extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 15 km/h

Digital speed and meter counter
